Flight Simulator

Taking Flight

In 2015 we were very fortunate to have been providing funding by our Civilian Committee to build a high specification flight simulator.

The project is constantly evolving as we incorporate more features into its design.

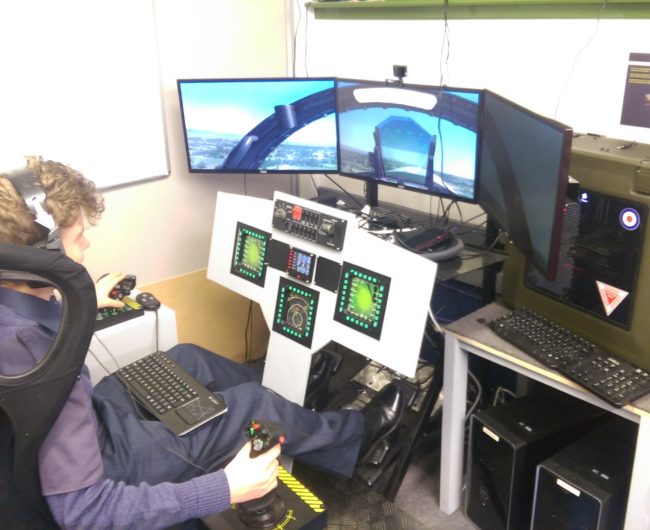

The current specification as off January 2016:

• Power – Base unit is a high specification gaming machine which uses 16gb ram, an i5 processor, ATI graphics and Solid State Hard Disks to power the simulations.
• Display – 3x 23 inch HD monitors provide the wrap around screen effect.
• Controls – The system uses the Saitek X55 joystick and throttle control units along with pedals to simulate actual aircraft controls.
• Instruments – We are replicating the main control console from RAF aircraft like Typhoon and Hawk by incorporating off the shelf simulator components.
• Head Tracking – We have incorporated a head tracking device to allow cadets to “look around” naturally.
• Force Feedback – We utilise a force feedback device under the seat which causes the seat and enclosure to vibrate to replicate the forces encountered on takeoff and landing.
• Seating – Adjustable Racing seat allows different cadets to use the simulator easily.
• Enclosure – The seat, control surfaces and displays are mounted in a dedicated enclosure.

Whats Next?

The simulator will continue to evolve.

Our future plans are below:

• Incorporate more useable instruments into the main control panel from the Saitek Pro Flight range.
• Expand the enclosure – If space allows make it fully enclosed.
• Increase screensize to 27 inches.
• Consider upgrading and incorporating VR technology
